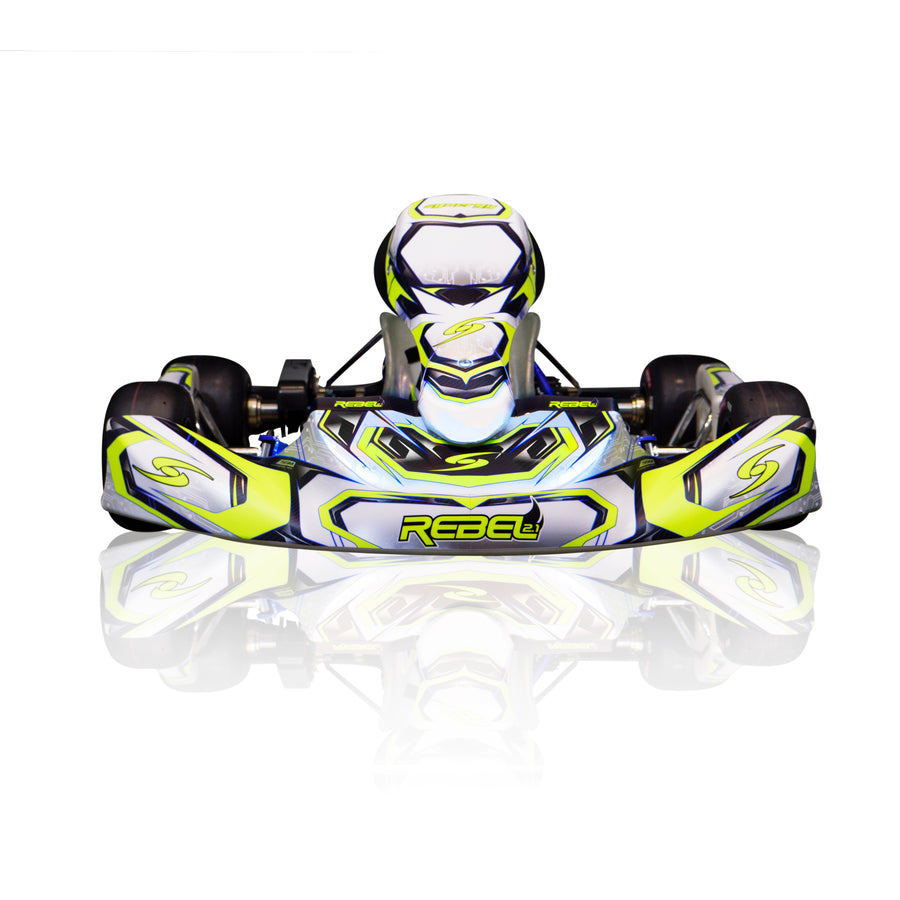

Synergy Rebel 2.1 (Rolling Chassis) 2024 X30 Spec 50mm Axle

The Synergy Rebel 2.1 is here!

Synergy Racing Developments have combined forces with one of the biggest and most successful kart manufacturers in the world to produce our own full size chassis suitable for every class from Mini (UK) to Seniors.

loFollowing an intensive development program through the second half of 2020, we evolved the successful range of Freeline products to produce a chassis to our own specifications, giving both existing and new customers the opportunity to take advantage of our renowned service on a proven race winning product.

The chassis has been specifically developed to suit both the UK and European market on a range of engines and tyres and is extremely user friendly for both drivers and mechanics.

Test drives are available and we are interested in talking to teams serious about using our product and promoting our brand.

Technical Specifications

Homologation: 32/CH/20

Tubes dia: 30mm

Wheel Base: 1045mm

Rear Width: 1045mm

Front Width: 635mm

Length: 1510mm

Axle: 50x2x1020 F

Front Hubs: 85mm MG

Rear Hubs: 50x90 MG

Braking System: Hydraulic 1 FL

Tank capacity: 10L

Wheels: DF130+DF210 M
