Honda GX160 RT2 QHG4 19.05mm

Description

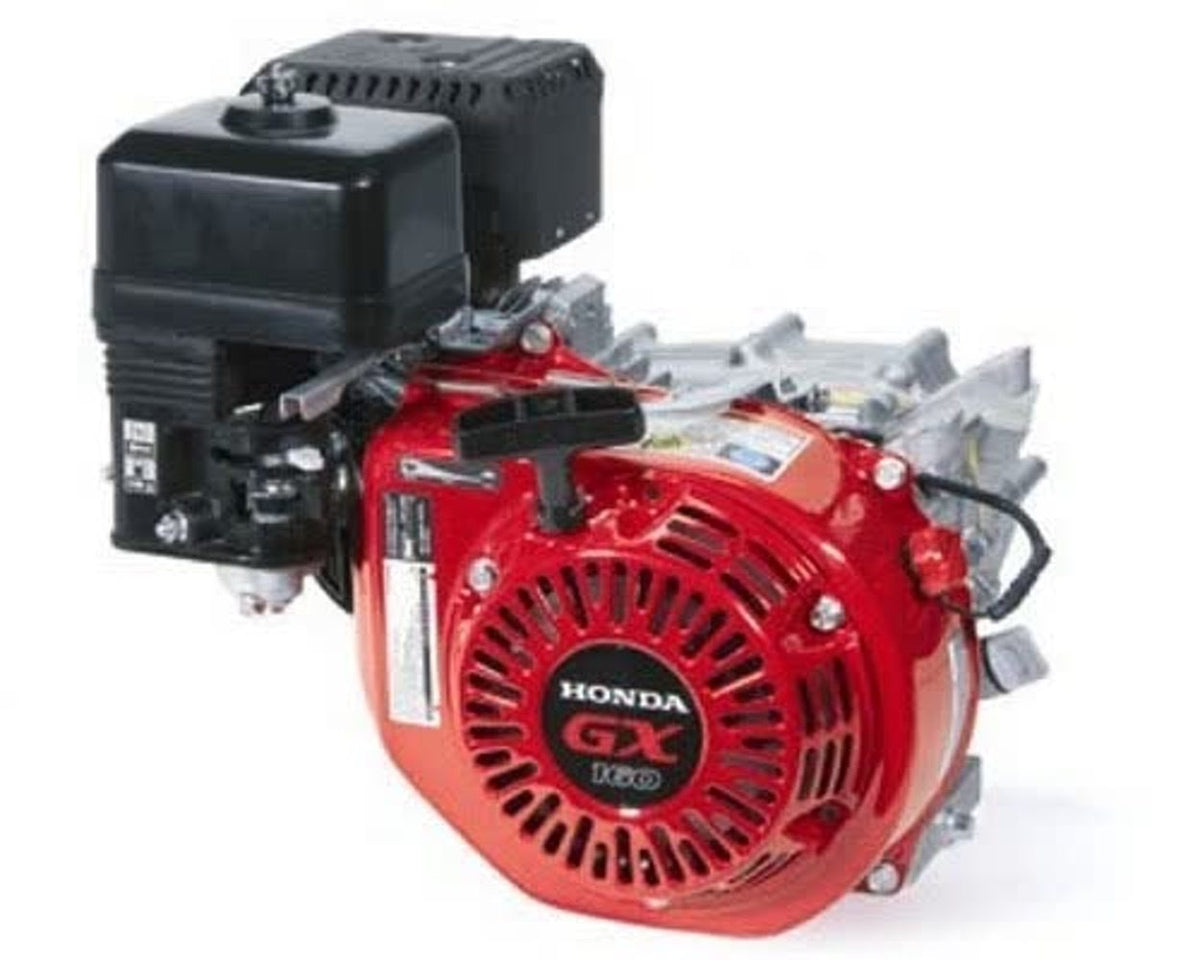

Horizontal air-cooled Honda petrol engines GX160

This type is equipped as standard with a recoil starter, reinforced exhaust and reinforced valve springs. Ideal for karting! Below we have listed the technical properties for you. In the appendix you will find a specification booklet.

Technical properties:

Brand: Honda
Fashion model: GX160RT2 QH G4
Engine Type:  air-cooled OHV petrol engine with horizontal output shaft
Axle size:  19.05 mm
Cylinder sleeve material:  cast iron
Cylinder inclination:  25°
Bore x stroke:  68 x 45 mm
Cylinder capacity:  163 cm3
Compression:  9:1

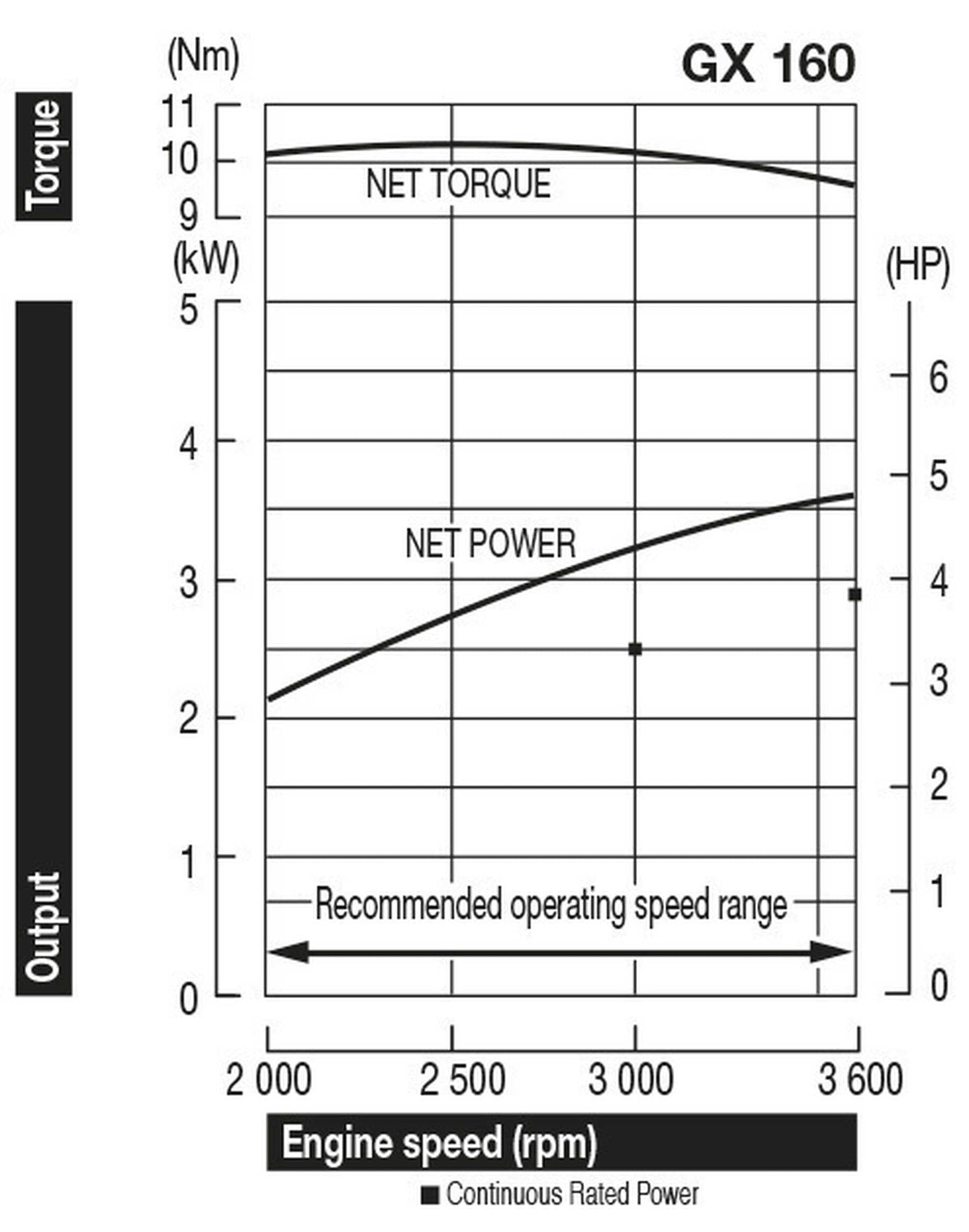

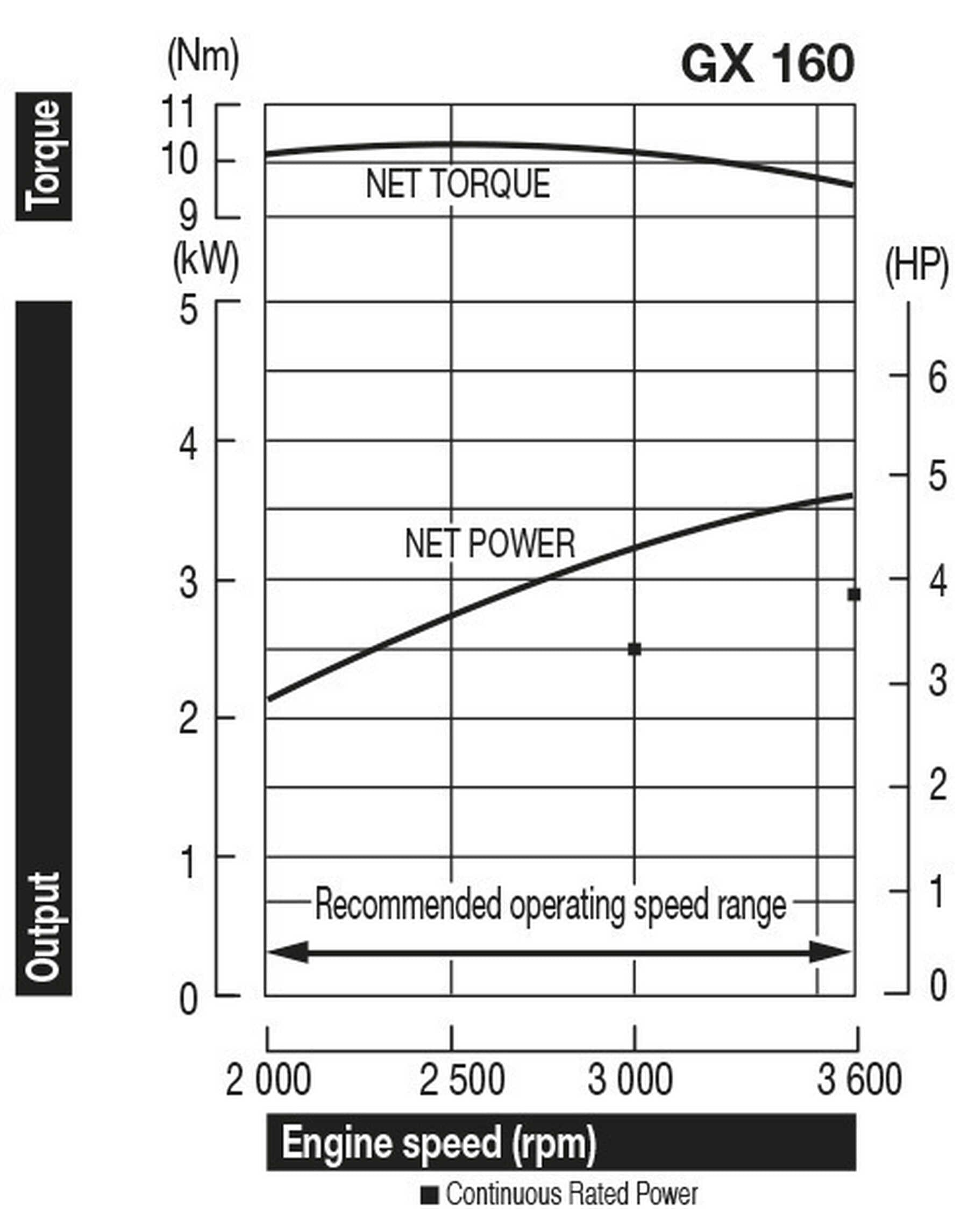

Net power:  4.8 hp (3.6 kW) / 3600 rpm
Continuous rated power:  3.4 hp (2.5 kW) - 3600 rpm / 3.9 hp (2.9 kW) - 3600 rpm
Just. Torque:  10.3 Nm / 2500 rpm
Ignition:  electronic ignition
Starting system:  recoil starter
Tank capacity:  3.1 liters
Fuel consumption at continuous nominal. power:  1.4 l/h - 3600 rpm
Engine oil capacity:  0.6 l

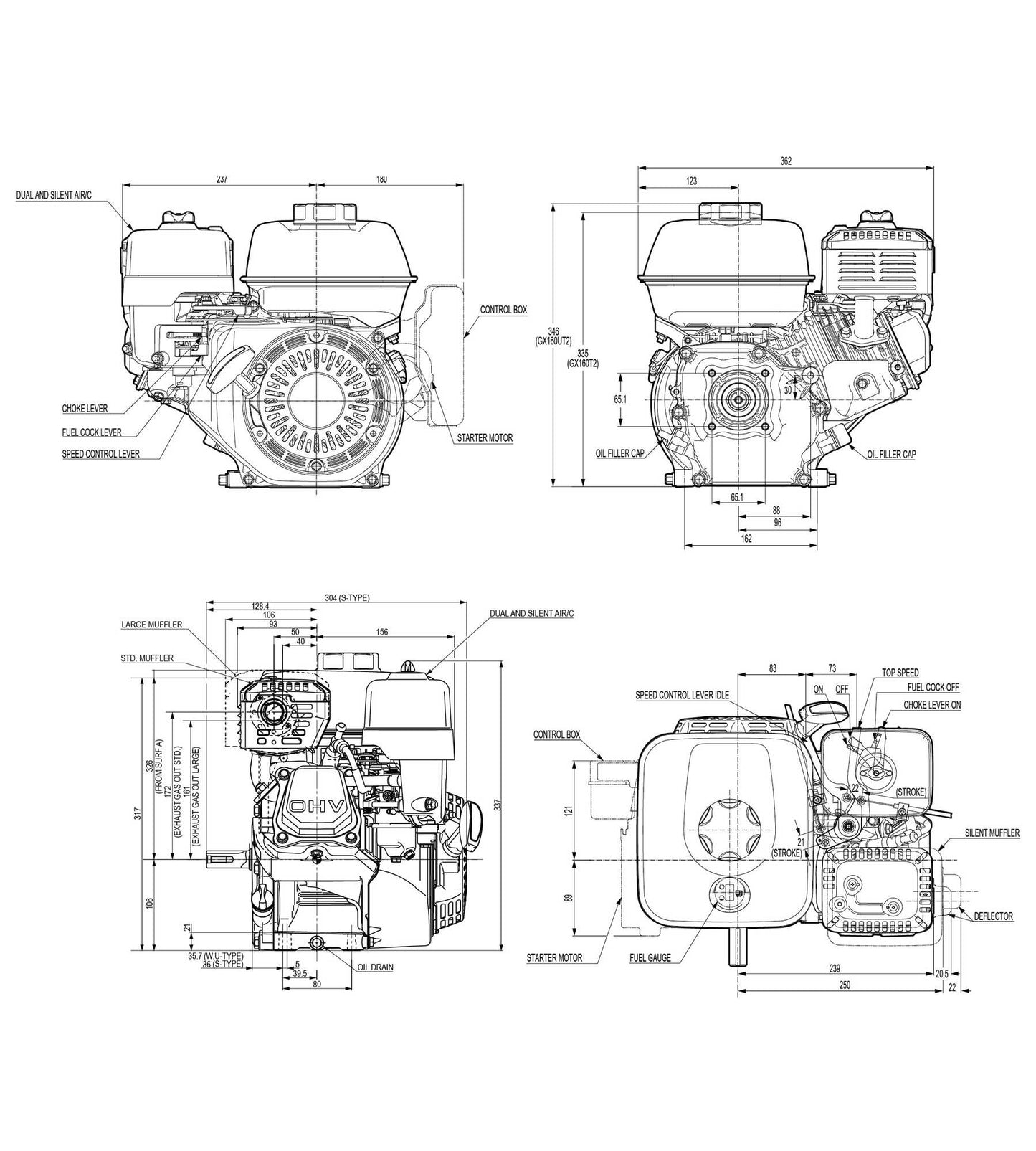

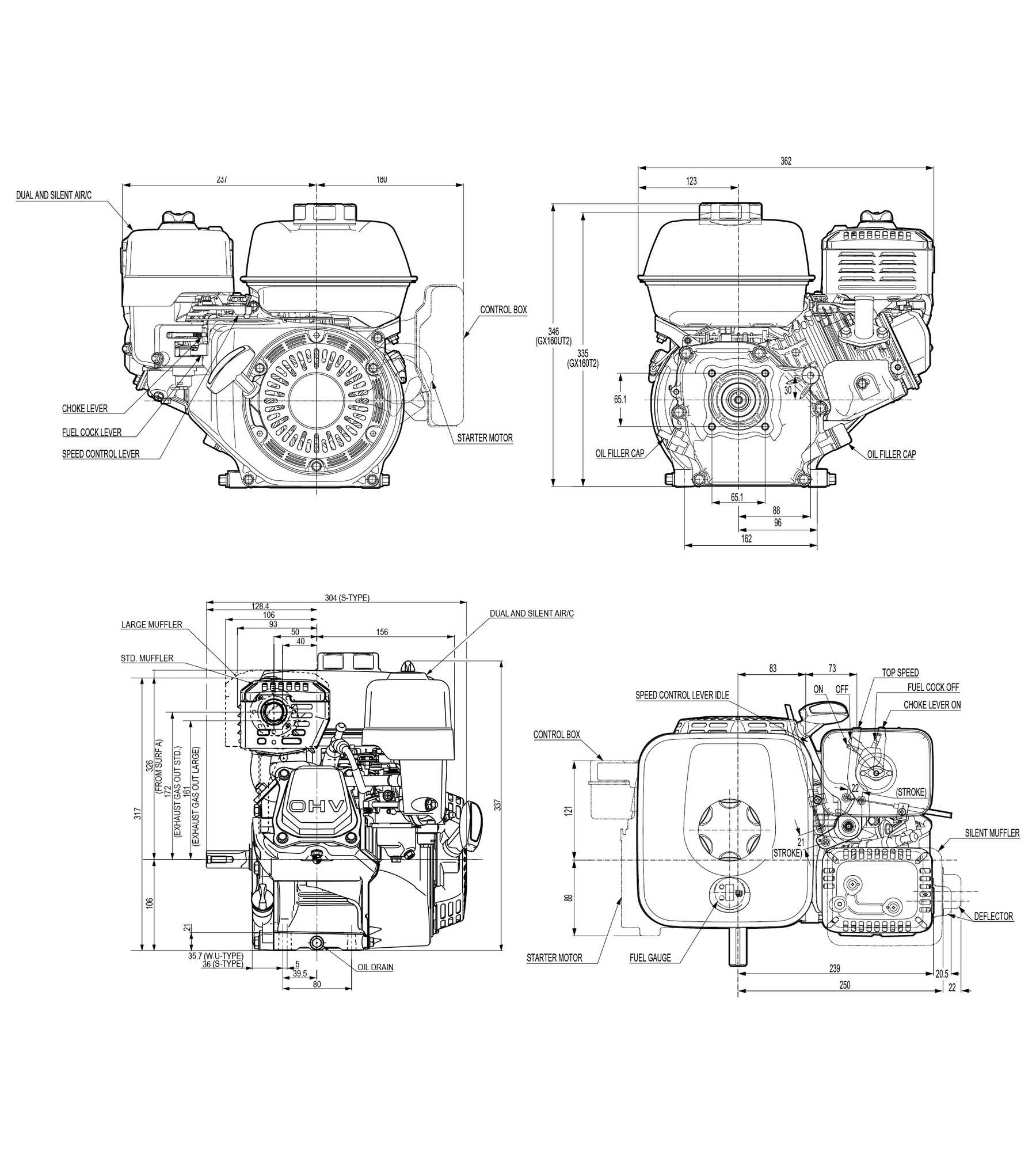

Dimensions (LxWxH):  312 x 362 x 346 mm
Dry weight:  15.1 kg
